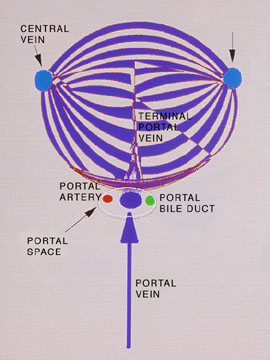

| Figure 4 - While the boundaries of the lobule are well visible,those of the acinus are unrecognizable under the microscope. Arising like a berry, a grape (latin "acinus") on the vine around the terminal portal vein,artery and bile duct, the liver simple acinus forms a mass of liver cells and sinusoids which drain toward two adjacent central veins. This structure was demonstrated by Rappaport et al.(1) by injecting dyes in the portal vein. | |
| (1)Rabbaport A M, Borowy Z J, Loughheed W M, Lotto W N: Anatomical record 119:11-34,1954 |
