Spirometry

Objectives

  1. To detect presence or absence of obstruction in spirometry.
  2. To judge severity of obstruction.
  3. To be able to detect significant change following bronchodilator administration?
  4. To identify patterns of flow volume loops.









History













Predicted Value Observed Pre % Predicted
FVC Liters 5.05 1.56 30
FEV1 Liters 4.03 0.55 13
FEV1/FVC % 77 34 45
FEF25-75 L/S 4.0 0.17 4
PEFR L/S 9.3 1.73 18
FET Secs - 10.03 -
FIVC L 5.05 1.54 30
PIFR L/S 6.2 2.47 39















































Criteria for Obstruction:

Our patient has observed FEV1/FVC of 34% and % Pred of 45. Hence there is evidence for obstruction.













Criteria for judging severity of Obstruction:













Criteria for significant change Never use % change of FEV1/FVC

You evaluate for a significant change in the following

If there is a significant change in 2 of 3 it is a significant bronchodilator response.

If 1 of 3 shows a significant change it is borderline response.

If none of them show a significant change no response.

Our Patient There is no significant change in FVC, FEV1 and FEF 25-75 following bronchodilator administration. Hence this patient will be considered to have no significant response to bronchodilator.

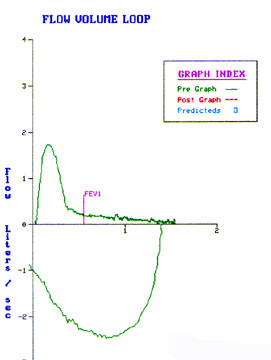

Flow volume loop pattern

The flow volume loop has a typical obstructive pattern as seen in patients with COPD.
