Mammogram Image Atlas

Normal

• Pectoral Muscle

• As women age there is fatty infiltration of the breast associated with atrophy of glandular tissue.

• Fat is lucent and is dark in mammogram.

• Glandular tissue are dense and white in mammogram.

Normal labeled

Young adult

• In young women the breast is extremely dense .

• Hence it is difficult to distinguish cancer from normal dense glandular tissue in young women.

Cancer Breast

• Primary:

  • Mass

    • Asymmetric density

    • A spiculated mass is the most common mammographic appearance.

  • Calcifications

    • Micro calcifications may be seen on mammography in at least 30% of cases of invasive carcinoma.

    • They are 1 mm or less and sand like

    • The calcifications represent necrotic debris

  • Developing density

• Secondary:

  • architectural distortion

  • skin thickening or retraction

  • nipple and areolar thickening

  • abnormal ductal patterns

  • lymphadenopathy.

  • venous engorgement

  • asymmetry of the breast tissue.

Fibroadenoma

• A fibroadenoma appears as a well circumscribed mass with well-defined borders

• Its borders are smooth and round, oval or nodular

• They are frequently multiple and bilateral

• It typically has the appearance of a dense, popcorn-like calcification on mammogram

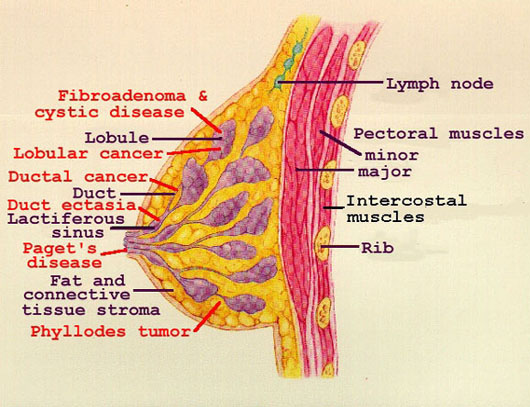

Sites of disease  Thackery Gray Ph.D.

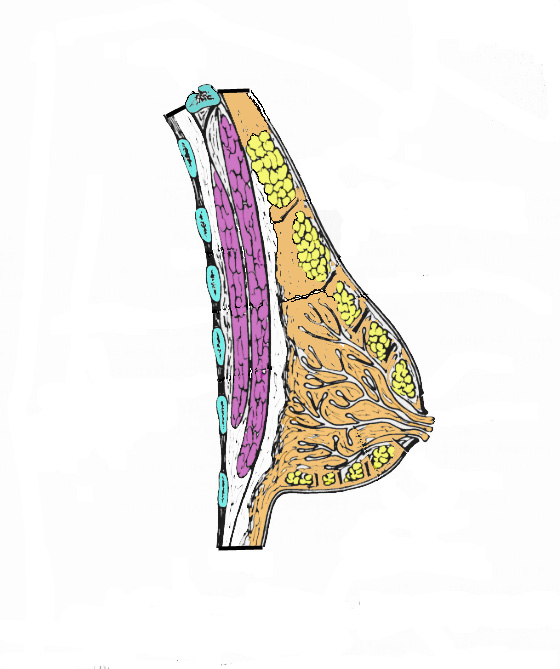

Anatomy  Thackery Gray Ph.D.



Mammo3.JPG	Case 1 - 1/25/03	337099
Mammo4.JPG	Case 1 -
Mammo5.JPG	Case 1 -
Mammo6.JPG	?? Date written 1/25/93 vs. 1/25/03
	Case 1 -
