Mechanics of Breathing - Part 2
Charles L. Webber, Jr., Ph.D.

Loyola University Medical Center


Learning Objectives: You should be able to:

Rhoades & Tanner Text Readings: Chapter 19, Pages 352-362



Airflow Profiles       Dynamic Compression      Air-Flow Resistance         Work of Breathing       MainMenu



Air Flow Profiles in the Airways

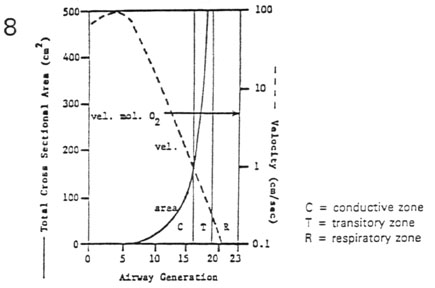

  1. Cross-Sectional Area of the Airways



  2. Three Types of Air-Flow Profiles

Airflow Profiles       Dynamic Compression      Air-Flow Resistance         Work of Breathing       MainMenu



Dynamic Compression of the Airways

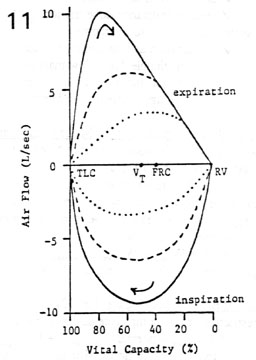

  1. Flow-Volume Loops





  2. Dynamic Compression of the Airways

Airflow Profiles       Dynamic Compression      Air-Flow Resistance         Work of Breathing       MainMenu





Four Factors Affecting Air-Flow Resistance

  1. Airway Caliber



  2. Air-Flow Profile

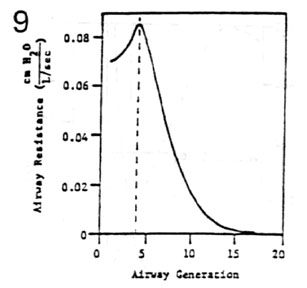

  3. Airway Generation

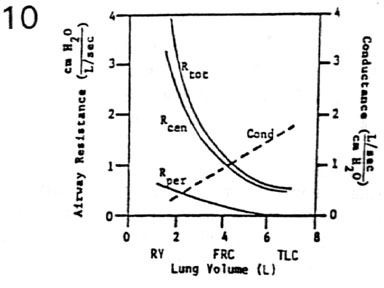

  4. Lung Volume

Airflow Profiles       Dynamic Compression      Air-Flow Resistance         Work of Breathing       MainMenu



Work of Breathing

  1. Components of Work



  2. Graphical Representation of the Major Components of Work

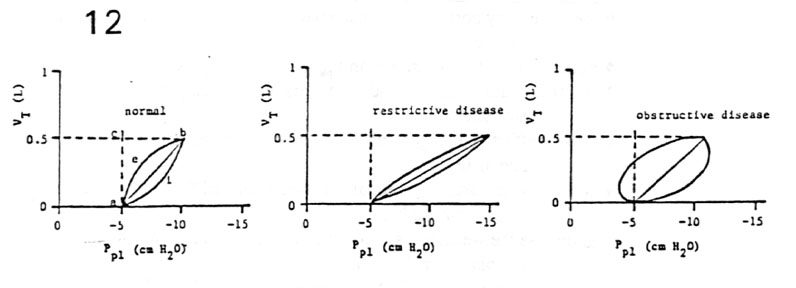

  3. Work of Breathing in Disease (Fig. 12)
