Bone Metastasis (Secondary bone tumors)

Describe the clinical setting and mode of presentation of secondary bone tumors.

• A lesion may be found in an asymtomatic patient with a history of primary tumor.
• Patient with a known primary tumor may present with a painful bone lesion.
• Patient may present with bone pain without known primary cancer and be found to have metastatic bone cancer.
• Patient may present with a pathologic fracture – a fracture occurring in an area of bone weakened by cancer.
• Patient may present with nerve root or spinal cord compression syndromes.

What are the common primaries that metastasize to bones?

• Prostate (most common site from men)
• Breast (most common site from women)
• Lung
• Kidney
• Bladder
• Thyroid
• Lymphomas

What are the common bones where metastasis is common?

The sites of metastatic cancer lesions in order of frequency:

• Vertebrae
• Femur
• Pelvis
• Ribs
• Sternum
• Humerus
• Skull

What are the useful imaging modalities to investigate secondary bone tumor?

• Plain Films
  • Indicates the net result of bone resorption and repair showing osteoblastic, osteolytic and mixed lesions, as well as defining the bone anatomy.
  • A skeletal survey (includes lateral skull, cervical spine, anteroposterior (AP) and lateral thoracic and lumbar spine, an AP pelvis and chest radiograph) is used as the primary investigation for bone metastases.
  • Lytic lesions must be greater than 1cm in diameter in order to be detected.
• Radioisotope Bone Scan
  • Excellent screening modality.
  • Radionuclide bone scanning is the preferred method for evaluating the entire skeleton for the presence of multiple lesions.
  • Reflects the metabolic reaction of bone to the disease process, with preferential uptake of the tracer at sites of active bone formation.
  • More sensitive than plain films for detecting metastasis.
  • No bone anatomy detected except in areas of increase uptake.
  • Metastases are usually multiple, irregularly distributed foci of tracer that do not correspond to any single anatomic structure.
  • The probability that an abnormal scan represents metastatic tumor is directly related to the number of abnormal foci.
  • Bone scans are also limited by a lack of specificity, with most false-positive results due to trauma, whether recalled by the patient or not.
  • As a result, the diagnosis of metastatic bone disease usually requires radiographic confirmation, especially if the number of lesions is small (fewer than four) and/or limited to the ribs.
• CT
  • Excellent soft tissue image, soft tissue and bony metastases are clearly demonstrated.
  • CT most appropriate for diagnosing spinal metastases in locations difficult to assess with bone scan or radiographs (i.e., pelvis/sacrum).
  • Also, it is reserved for patients with positive bone scans and negative radiographs in order to clarify pathology.
• MRI
  • Even more sensitive than CT, especially for lesions involving the spine, because it can provide mutiplanar images and identify the nerve and spinal roots.
  • Also used with positive bone scan and normal radiographs, as well as, vertebral compression fractures, and bone marrow infiltration of metastases.
  • Although whole body MRI has the potential to detect more lesions in the axial skeleton (particularly the spine) than bone scan, it is generally not feasible in most centers due to time constraints.
  • Whole body MRI techniques are rapidly advancing, and may replace technetium bone scanning in the future.
• PET Scans
  • There is no consensus as to the utility of PET scans in the clinical evaluation of bone metastases.
  • For some malignancies (i.e., lung and breast cancer), PET scans appear to be more specific than bone scans, although they are possibly less sensitive (especially for osteoblastic foci), and clearly more expensive.

What are the radiological modes of presentation of secondary bone tumors in plain radiographs?

Osteoblastic lesions

• Result from tumor producing cytokines that activate osteoblasts
• Best detected on bone scan
• Most commonly arises from prostate cancer, but also arise from breast, lung and carcinoid

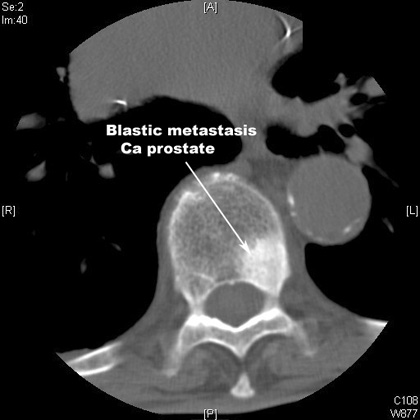

Bone Metastasis Blastic metastasis Primary Cancer Prostate. .

Bone Metastasis   Primary Cancer .Prostate

Osteolytic lesions

• Result from the tumor production of substances (i.e.PTHrP, Vit D-like steroids) that elicit bone resorption
• Best detected by plain radiology (may not be apparent until > 1cm)
• Most commonly arises from breast, lung, thyroid, renal, melanoma, and gastrointestinal malignancies

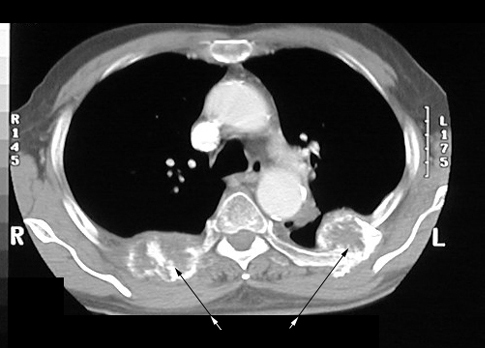

Bone Metastasis Expansile lytic rib lesions Primary Lung Cancer .

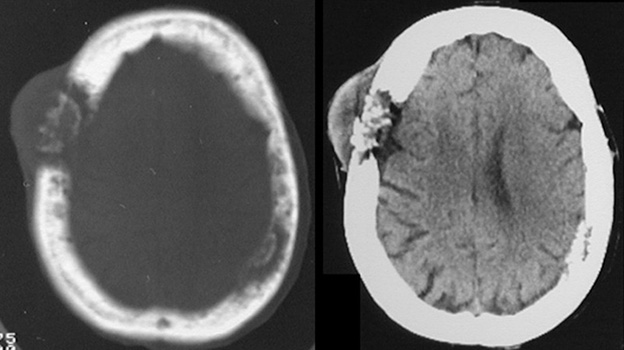

Bone Metastasis Lytic lesion right parietal bone. Bone destruction with soft tissue mass .

Mixed lesions –mixture of osteoblastic and osteolytic lesions – seen in breast cancer

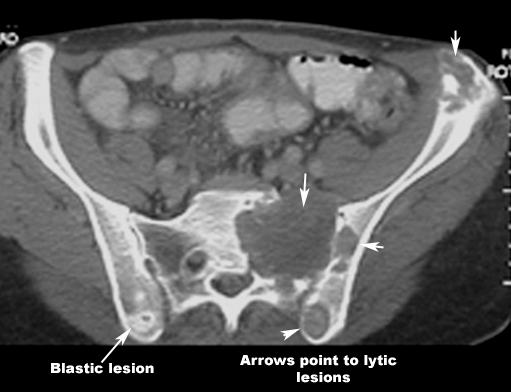

Bone Metastasis Blastic and lytic lesions Primary Cancer Breast.

Pathological fracture

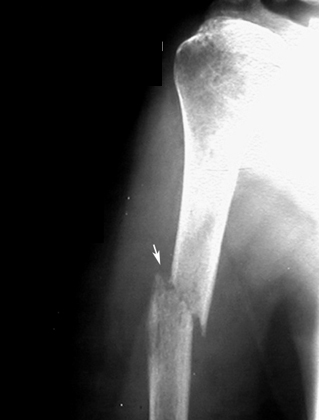

Bone Metastasis Lytic lesion of humerus with a pathological fracture. Primary Cancer lung.

Nerve root spinal cord compression

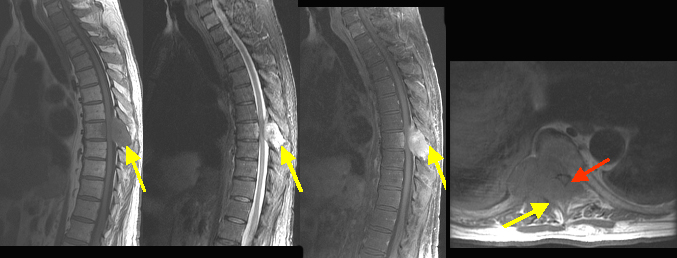

Pre-contrast sagittal T 1 wtd. MRI of the thoracic spine	Sagittal T 2 wtd. MRI	Post contrast sagittal T 1 wtd. MRI	Pre contrast axial T 1 wtd. MRI
Findings: Bony metastasis from renal carcinoma  involving the T 8 vertebral body, right pedicle/transverse process and spinous process (arrow in A,B,C,D) with epidural tumor producing marked degree of cord compression (red arrow).

Bone scan

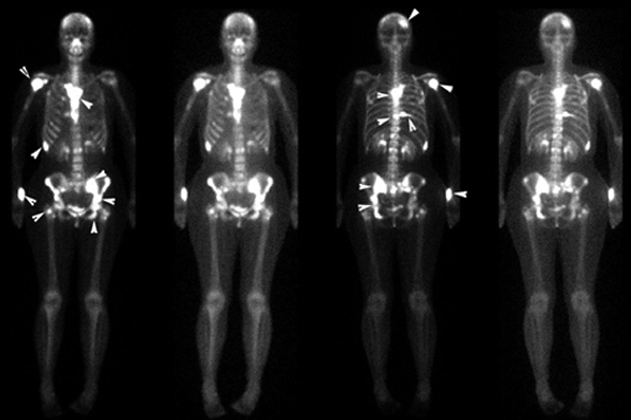

Bone Metastasis / Primary Cancer Breast Increased isotope accumulation by metastatic lesions.
